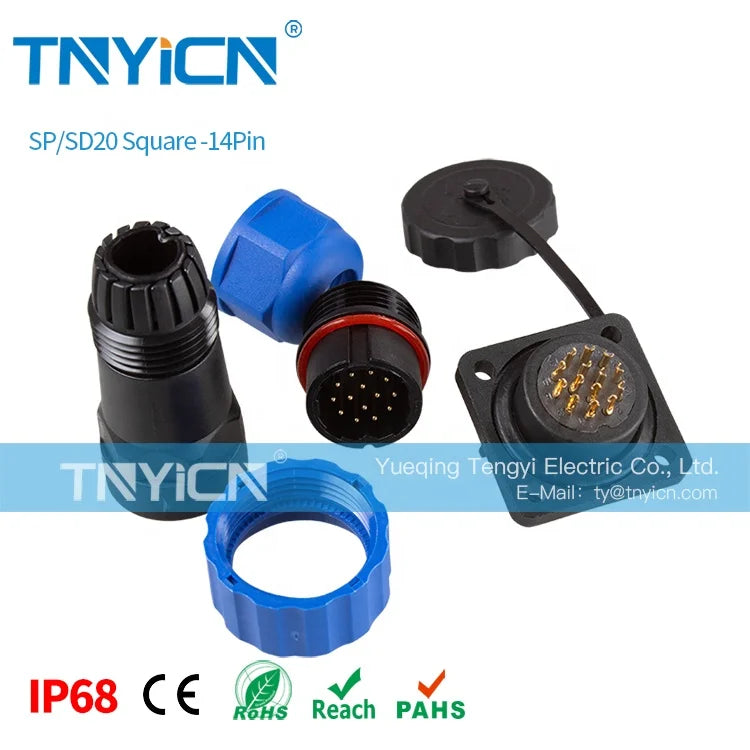

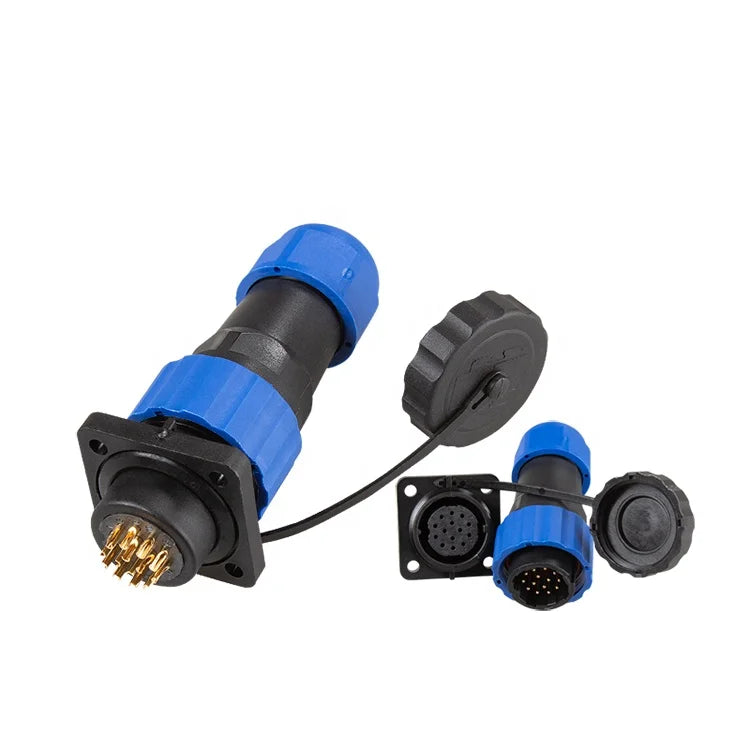

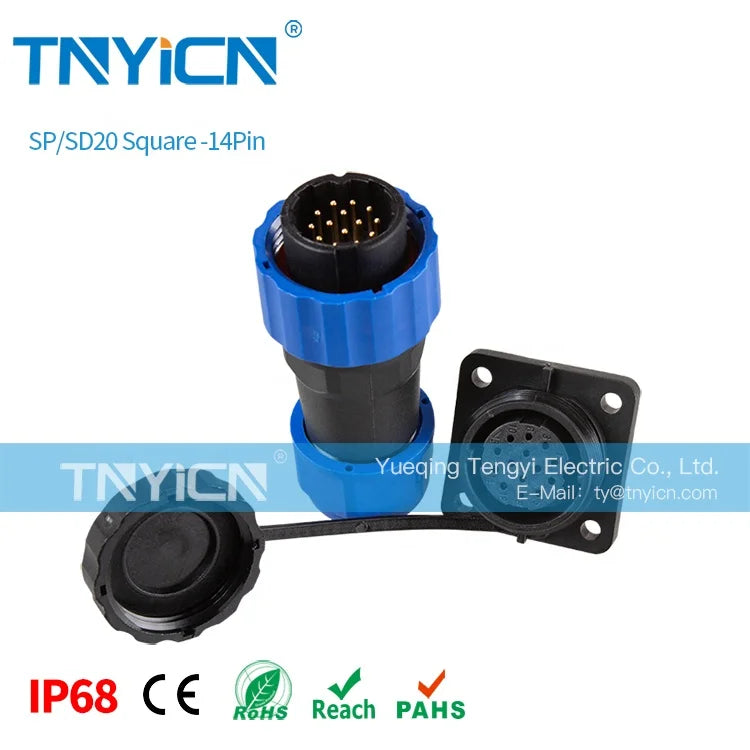

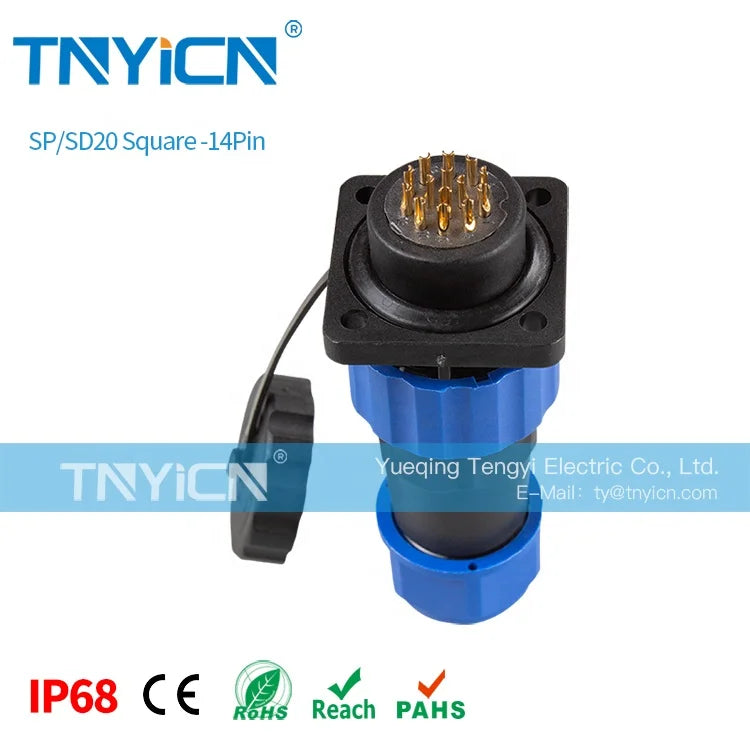

SD20 Square 14Pin 5A Solder Type Waterproof Connector
SD20 Square 14Pin 5A Solder Type Waterproof Connector is designed for square panel mount installation, threaded coupling, and reliable waterproof connection in industrial and outdoor equipment.

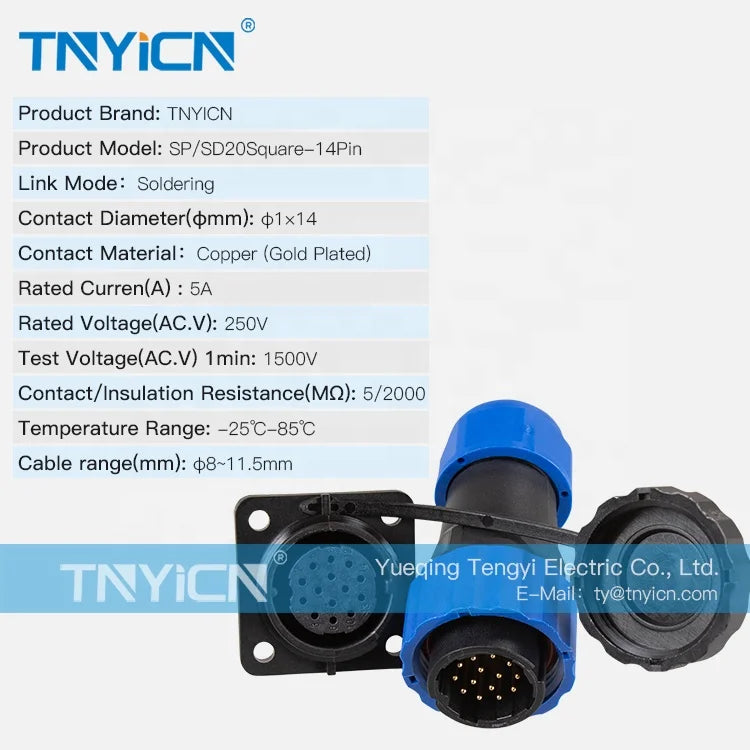

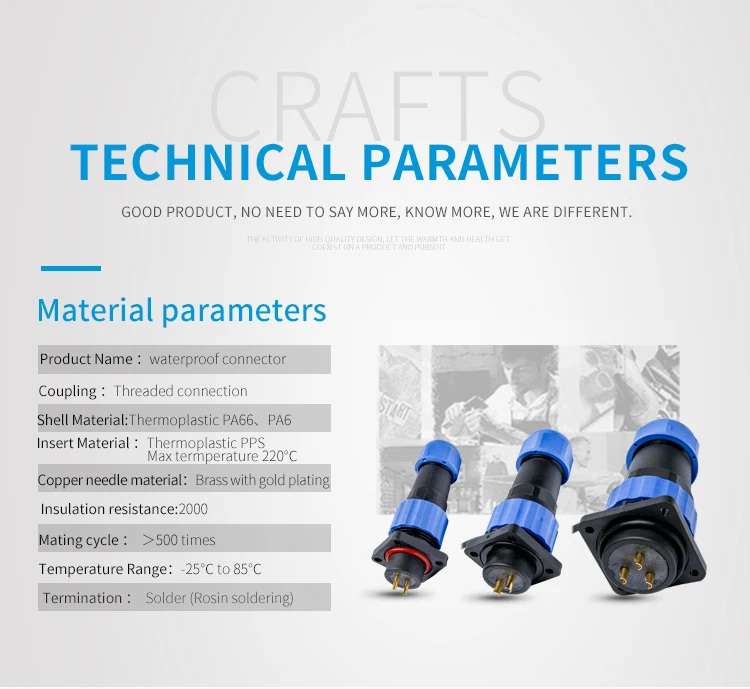

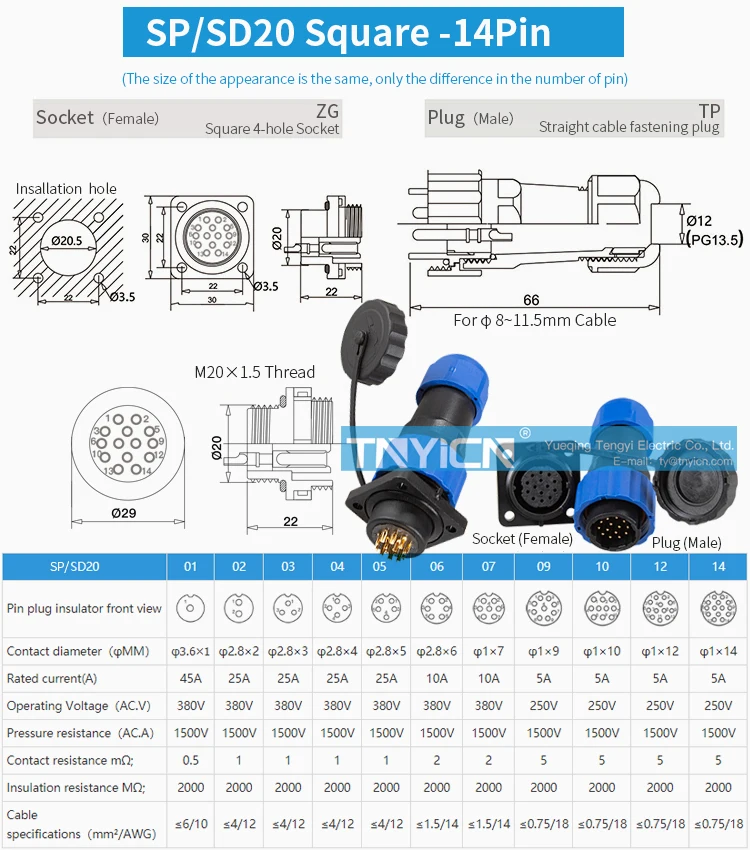

Technical Parameters
| Series | SD20 Square Solder Type |
|---|---|
| Pins | 14Pin |
| Rated Current | 5A |
| Working Voltage | 250V AC |
| Contact Resistance | 5 mΩ |
| Contact Diameter | φ1×14 |
| Wire Size | ≤0.75 mm² / 18 AWG |

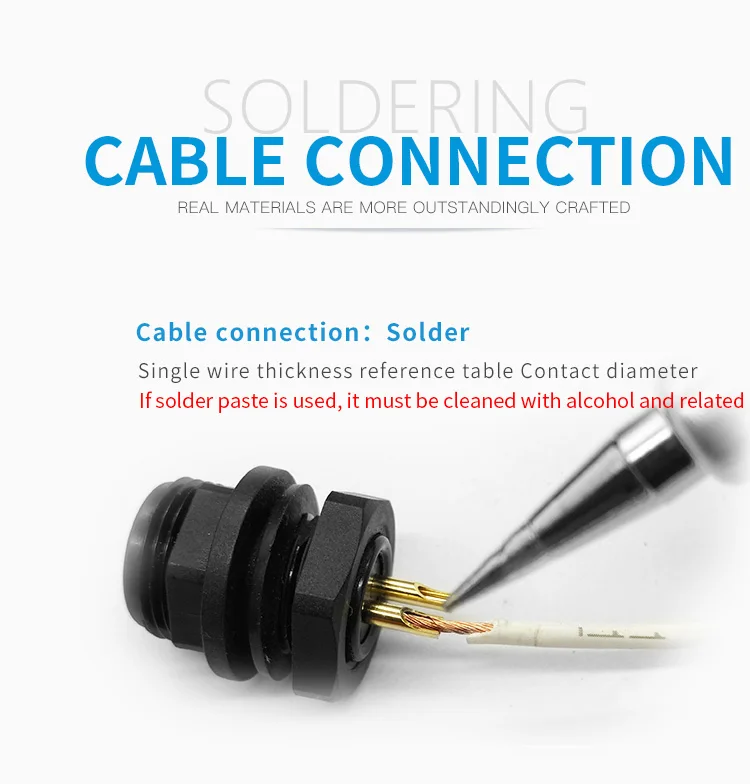

| Connection Type | Solder Type |

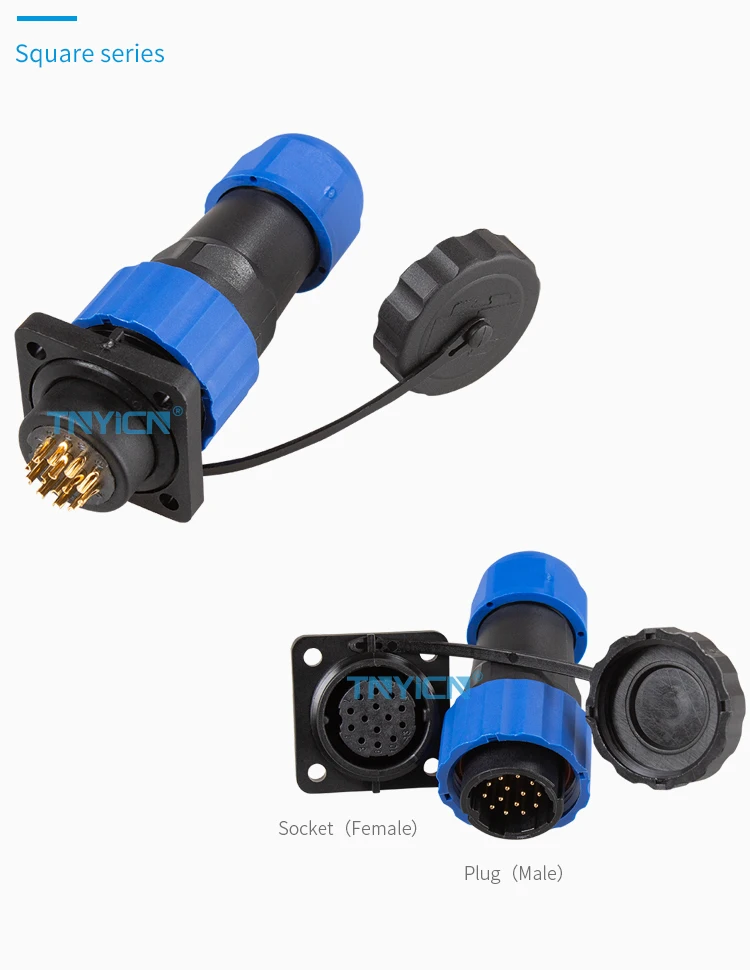

| Mounting Style | Square Panel Mount |
| Waterproof Rating | IP68 |

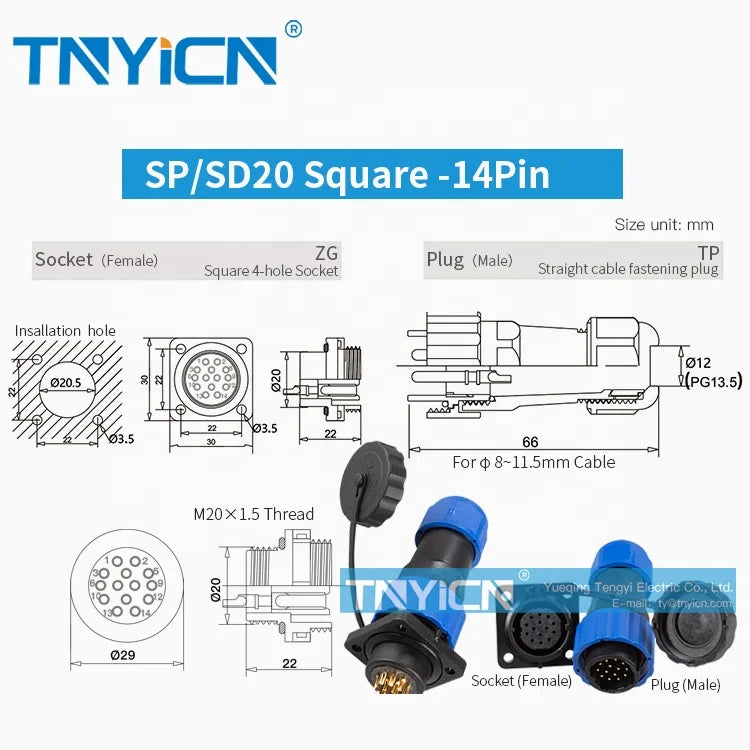

Product Details
