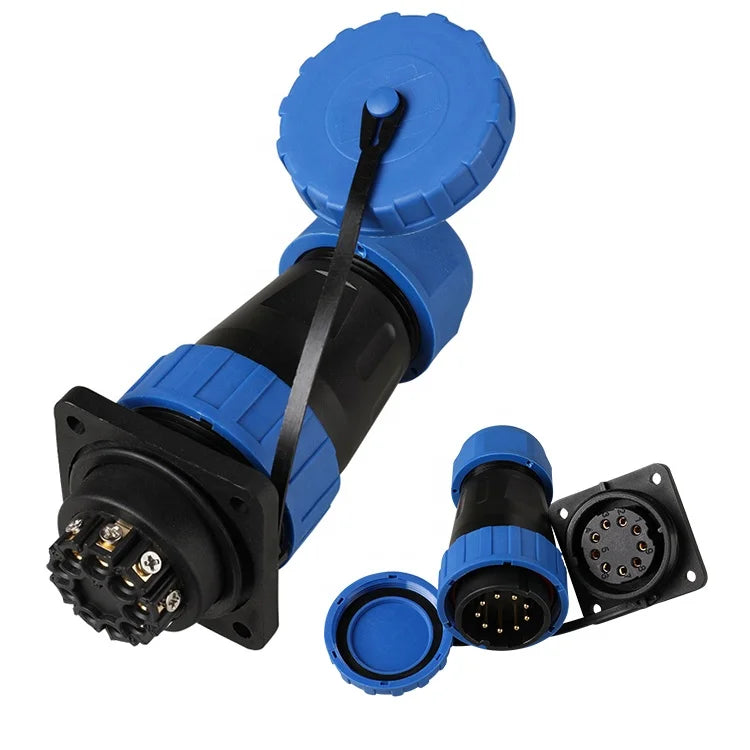

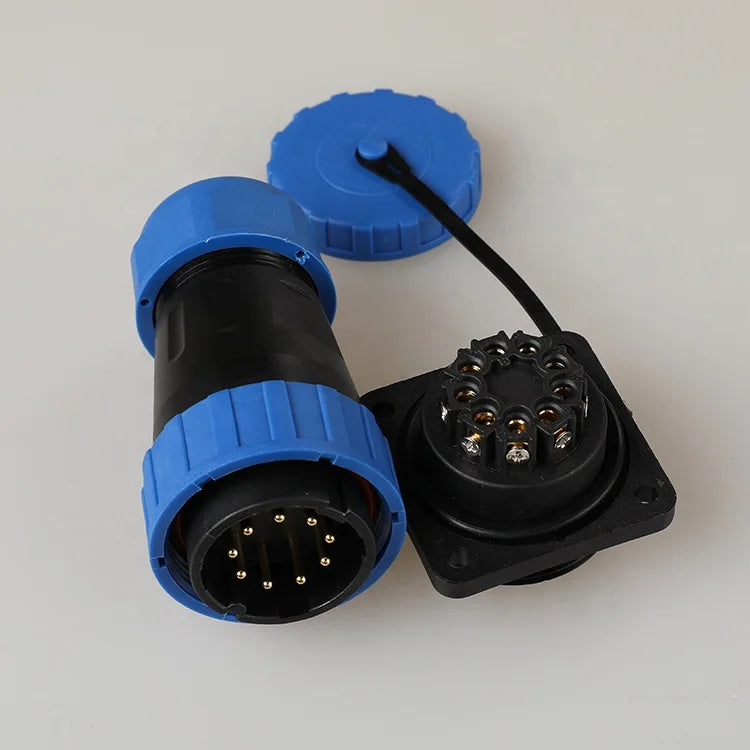

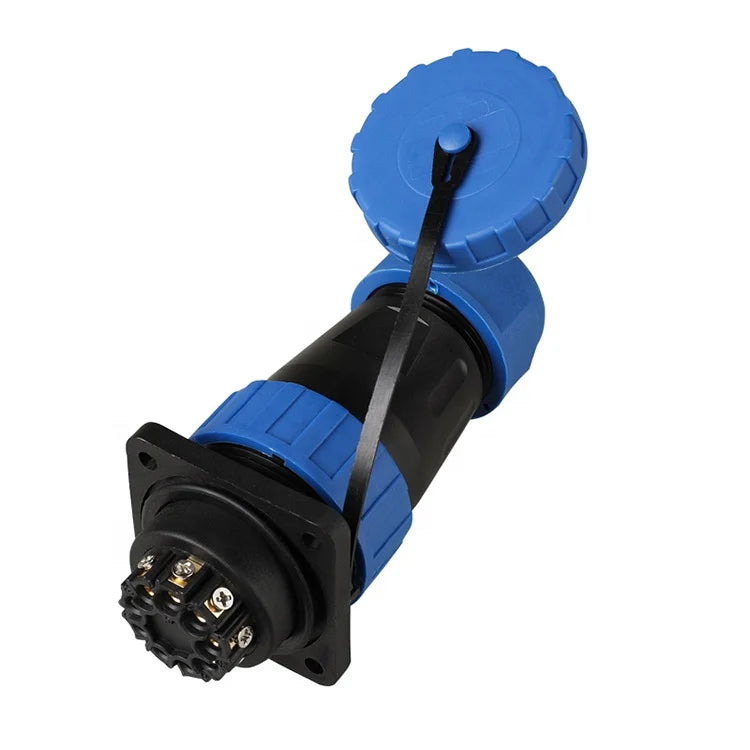

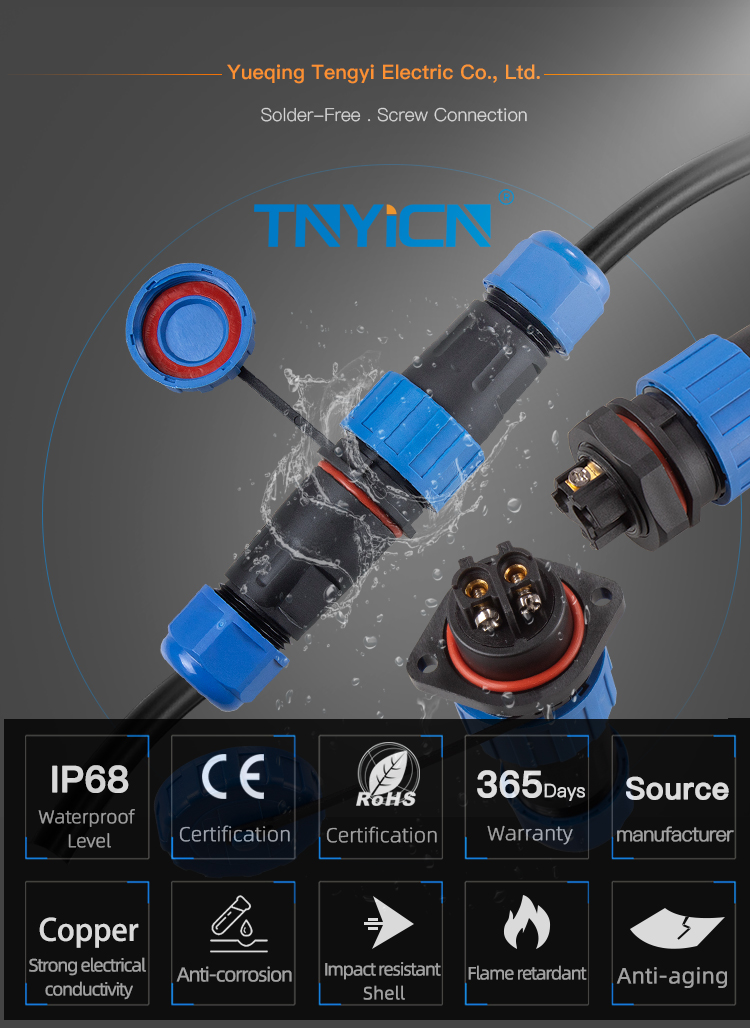

Product Overview
The TY28 Square 9Pin 10A Solder-Free Waterproof Connector is designed for waterproof cable connection without soldering. The square panel-mounted structure is suitable for equipment panels, control boxes, enclosures, and cable assembly applications where secure square panel mounting is required.
This model uses solder-free screw connection and a threaded locking structure, making installation easier for projects that require fast wiring, stable contact, and reliable waterproof cable assembly.
Core Specifications

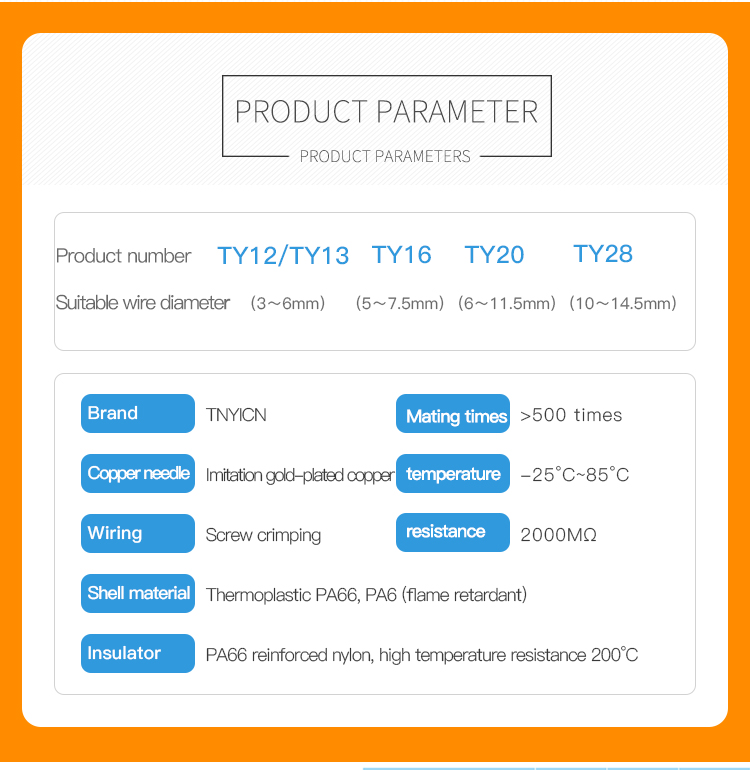

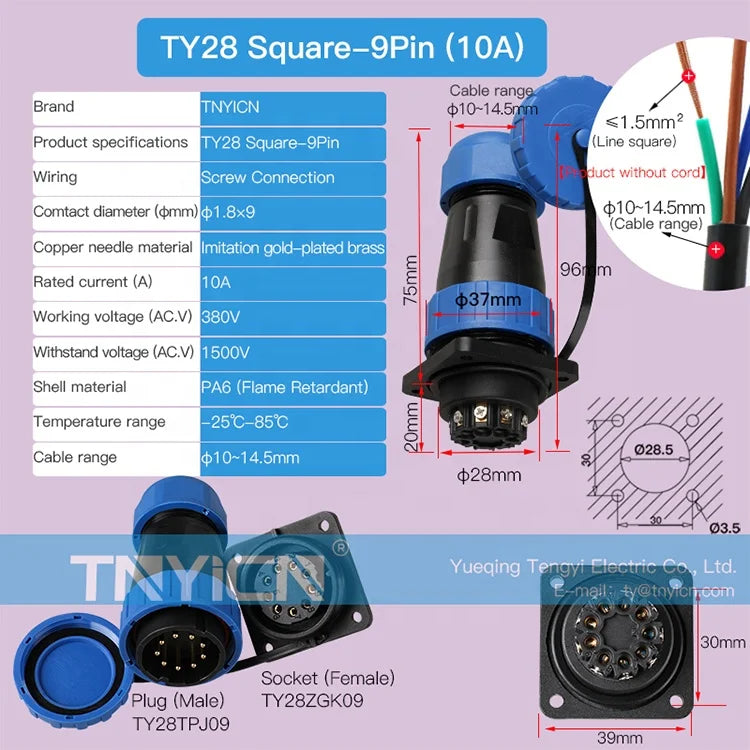

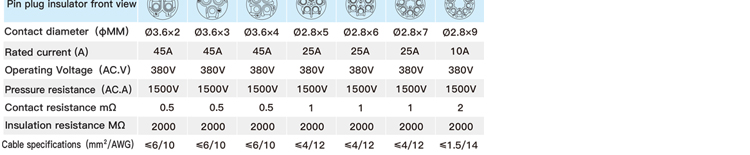

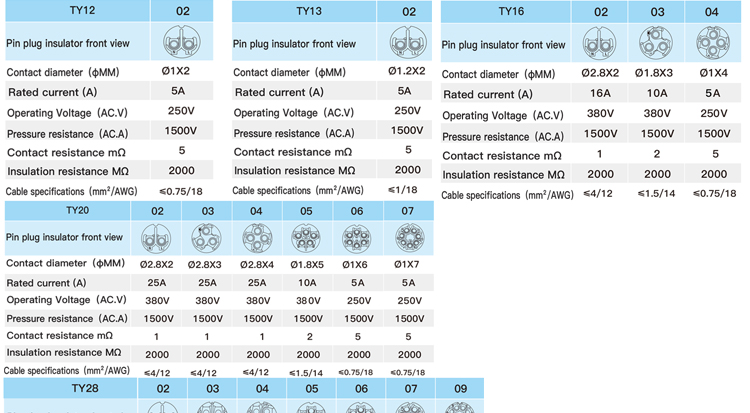

| Series | TY28 |
|---|---|
| Connector Type | Square |
| Pins | 9Pin |
| Rated Current | 10A |
| Working Voltage | 380V AC |
| Withstand Voltage | 1500V |

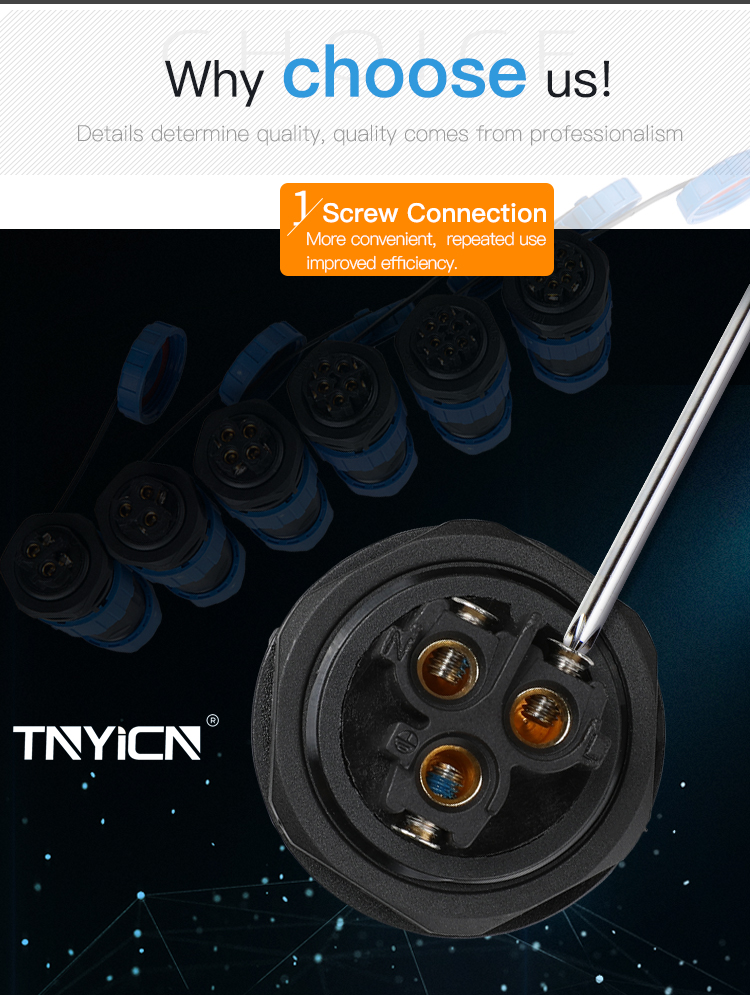

| Wiring Method | Solder-Free Screw Connection / No Soldering Required |
| Locking Method | Thread Connection |
| Plugging Cycles | >500 |
| Contact Resistance | 2 mΩ |
| Insulation Resistance | 2000 MΩ |
| Shell Material | Thermoplastic PA66,PA6 |

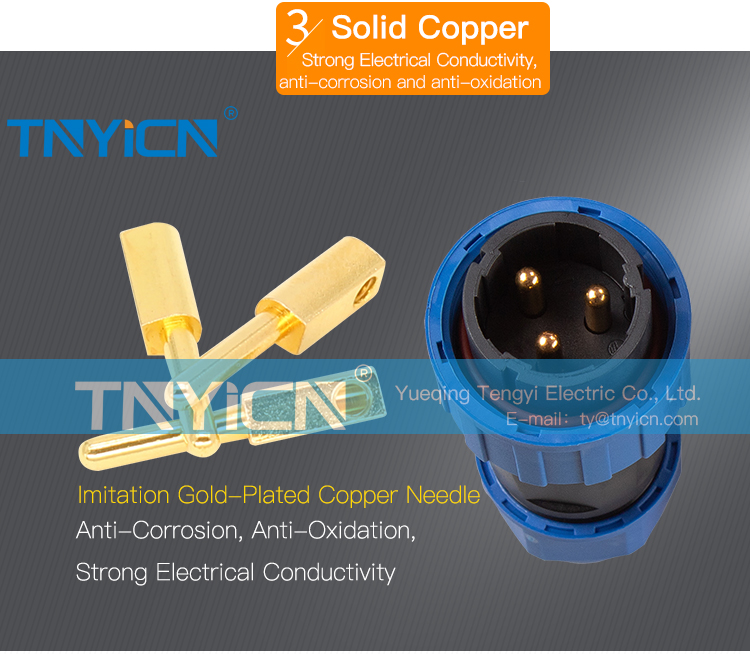

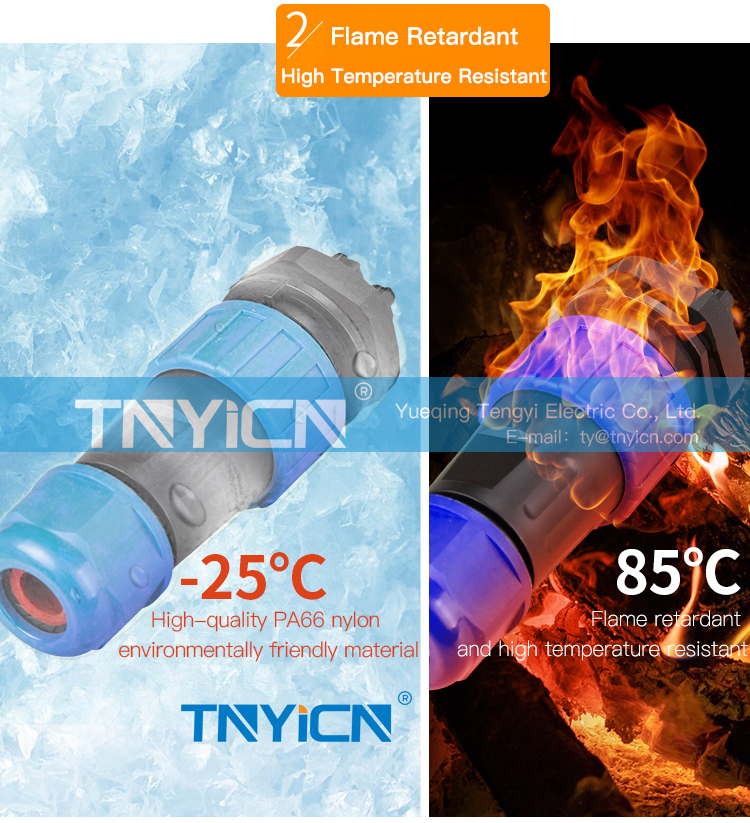

| Contact Material | Copper, gold plated |
| Insulator | Thermoplastic PA66, high temperature resistant up to 200℃ |
| Temperature Range | -25℃ to 85℃ |

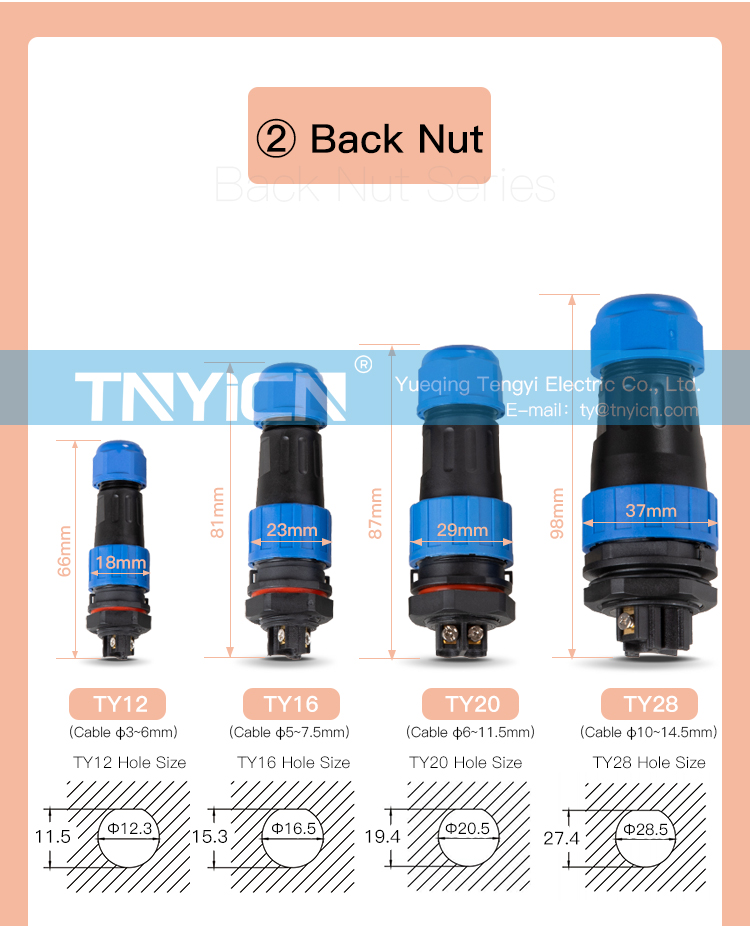

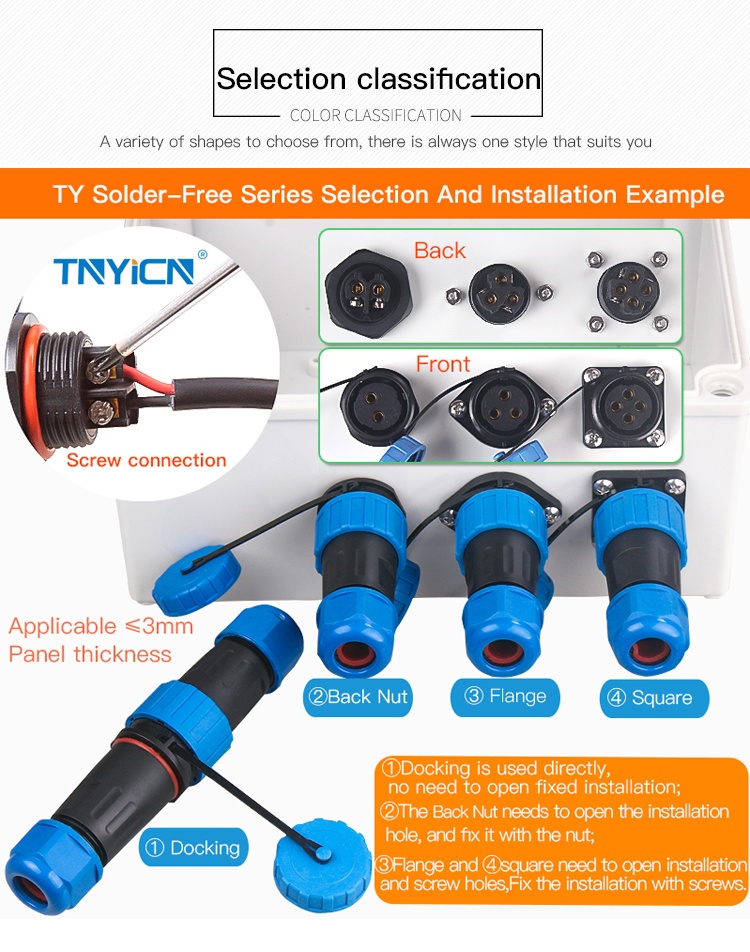

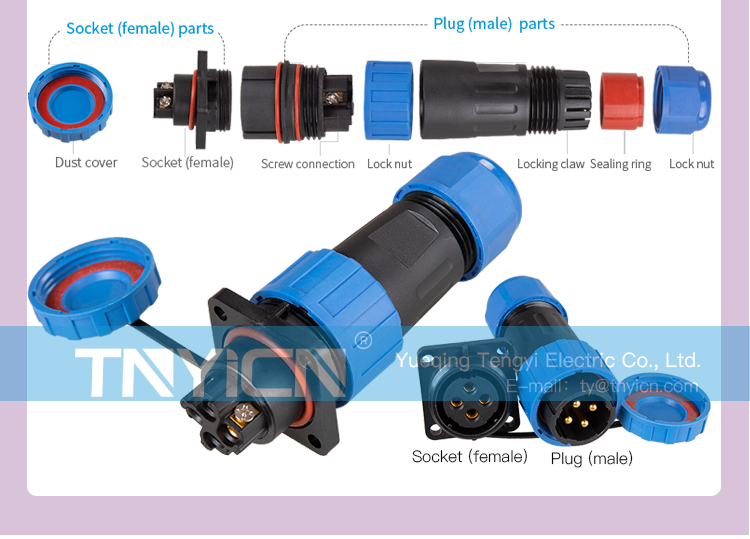

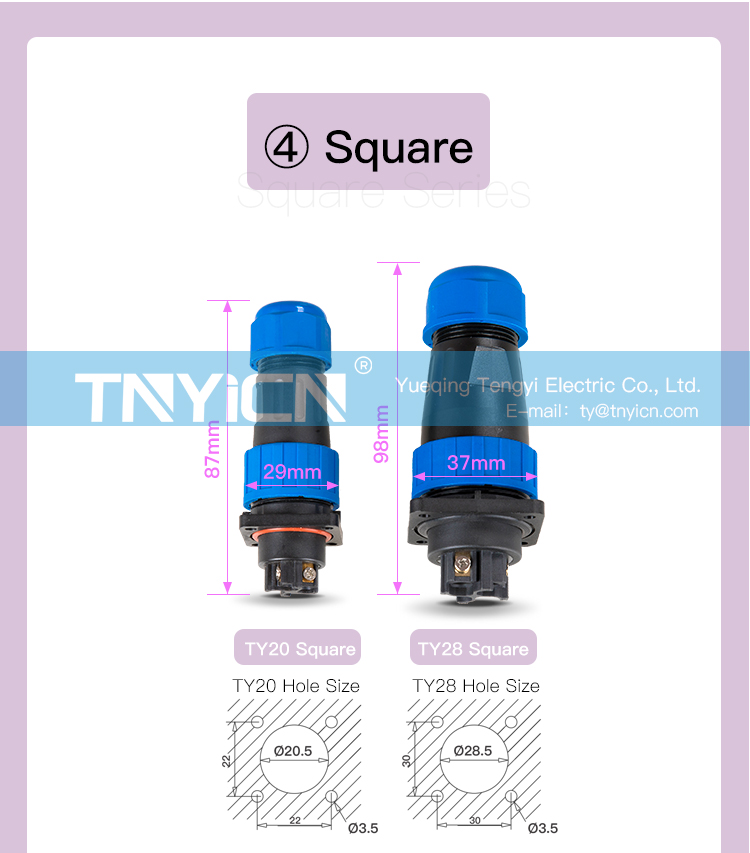

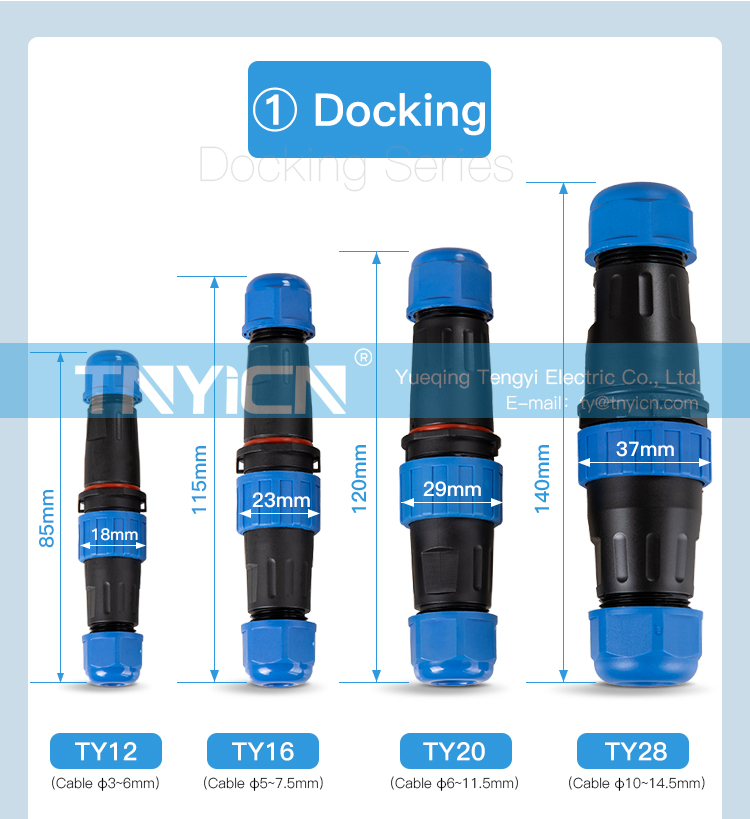

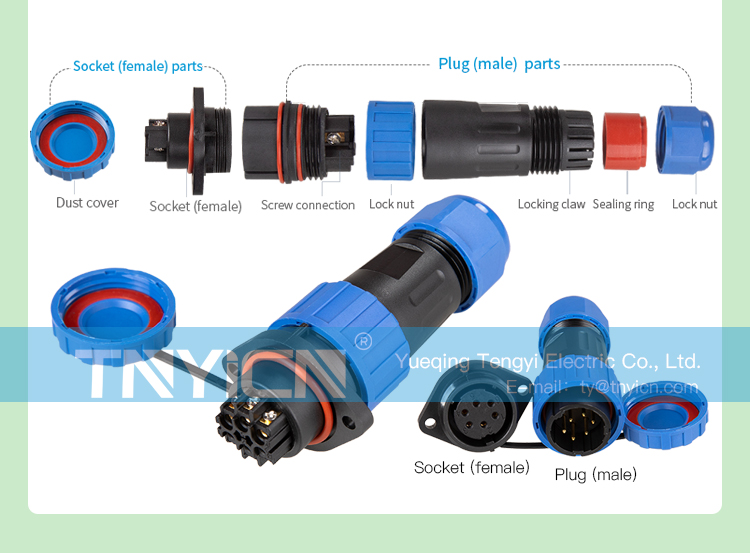

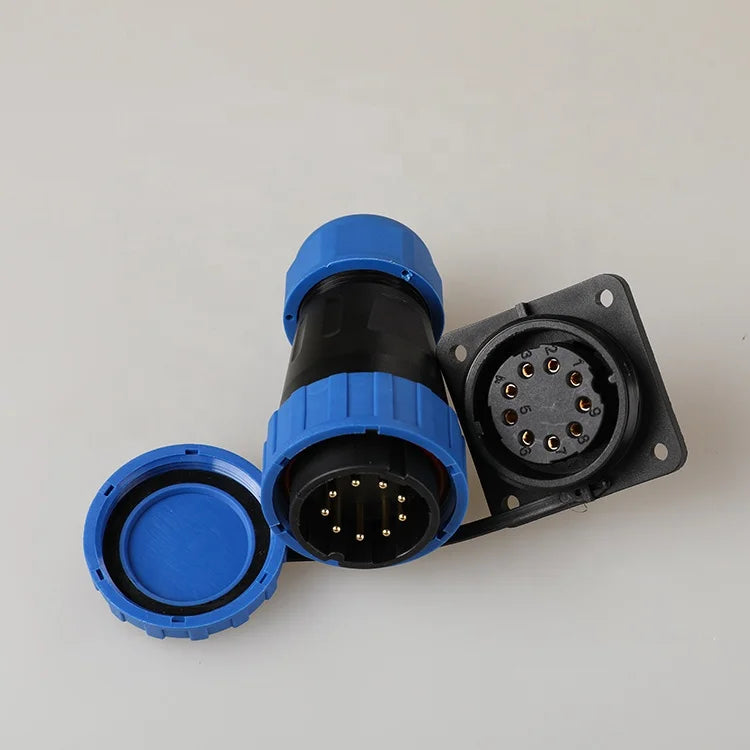

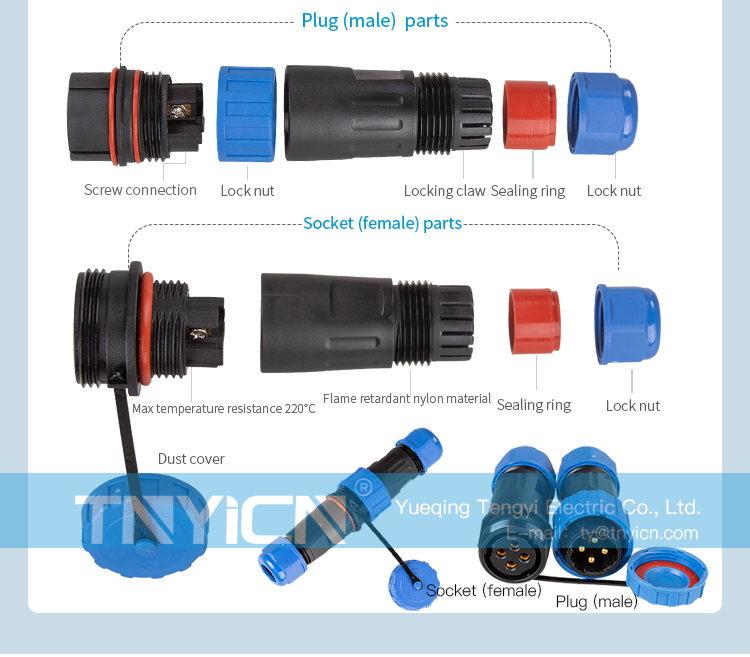

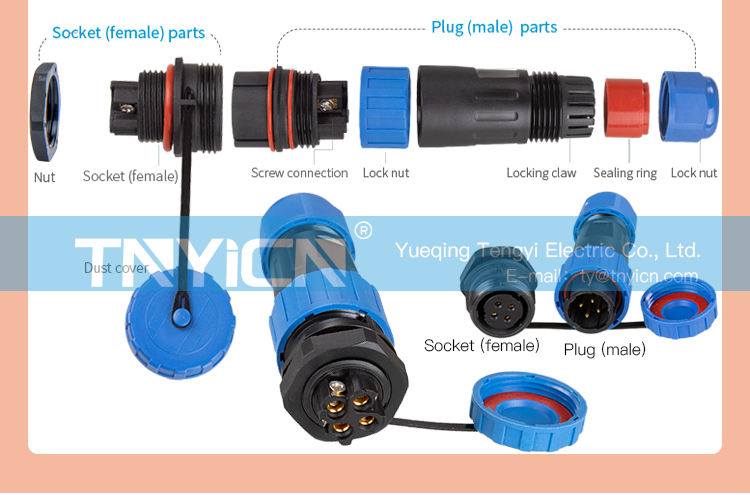

Product Details and Dimensions
Reverse Customization

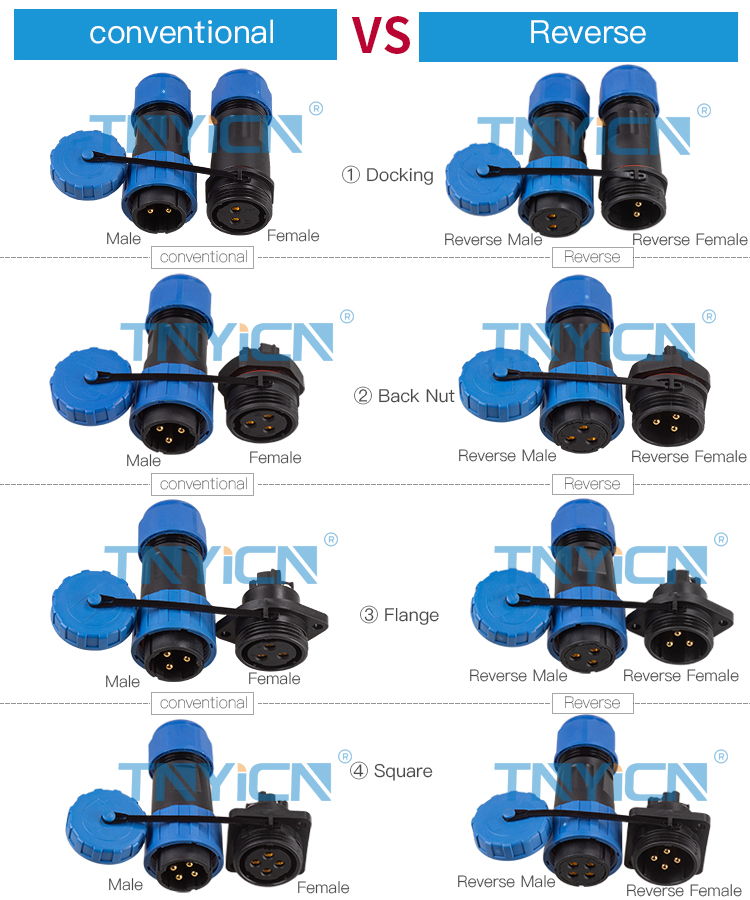

This connector can be supplied in conventional or reverse pin configuration according to wiring and installation requirements. Reverse customization should be confirmed before production.
Applications
- Outdoor LED lighting and landscape lighting systems
- Industrial automation equipment
- Power supply and electrical control systems
- Sensor and signal cable connection
- Equipment enclosure, panel, and waterproof wiring projects
How to Request a Quote
Please send us the required series, connector type, pin count, rated current, cable outer diameter, quantity, and application environment. Our team will help confirm the suitable connector model and provide a quotation.
FAQ
Does this connector require soldering?
No. This model uses solder-free screw connection, so wiring can be completed without soldering.

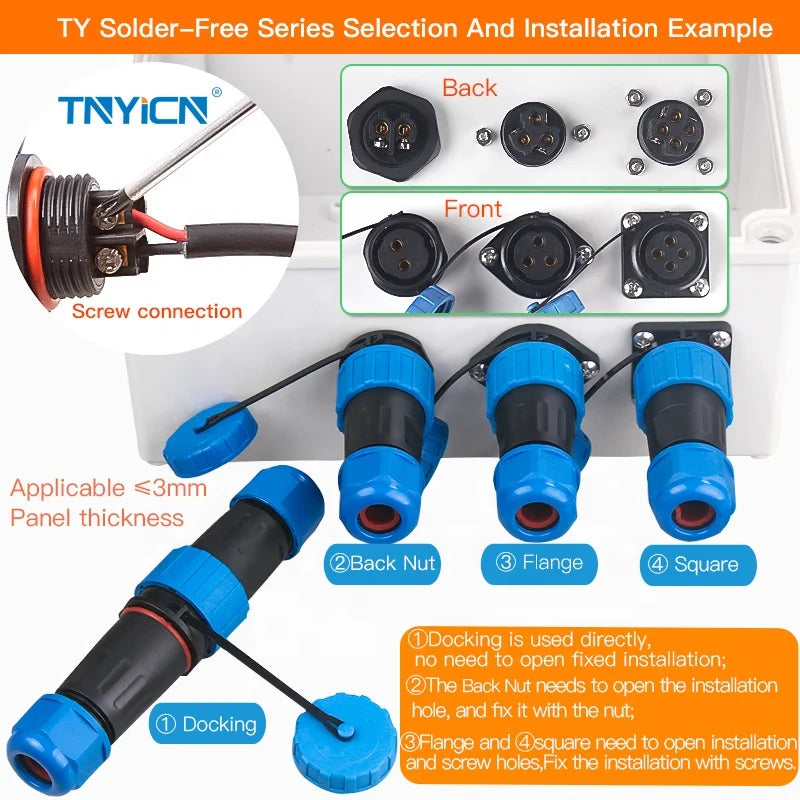

What is the square type used for?
The square type is commonly used for equipment panels, control boxes, enclosures, and cable assembly projects where a secure square panel mounting structure is required.
Can this connector be customized?
Yes. Pin count, cable length, wiring arrangement, and conventional or reverse pin configuration can be customized according to project requirements.
