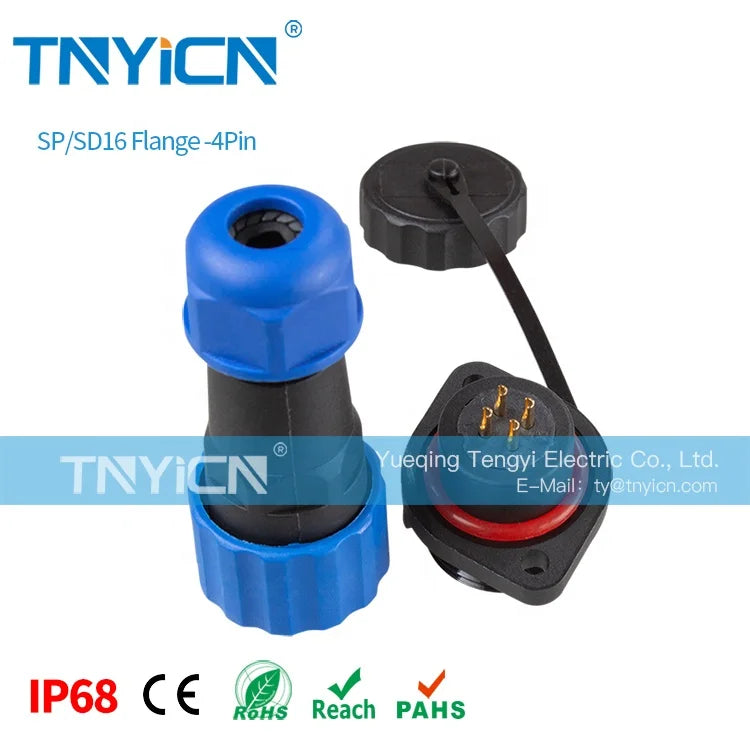

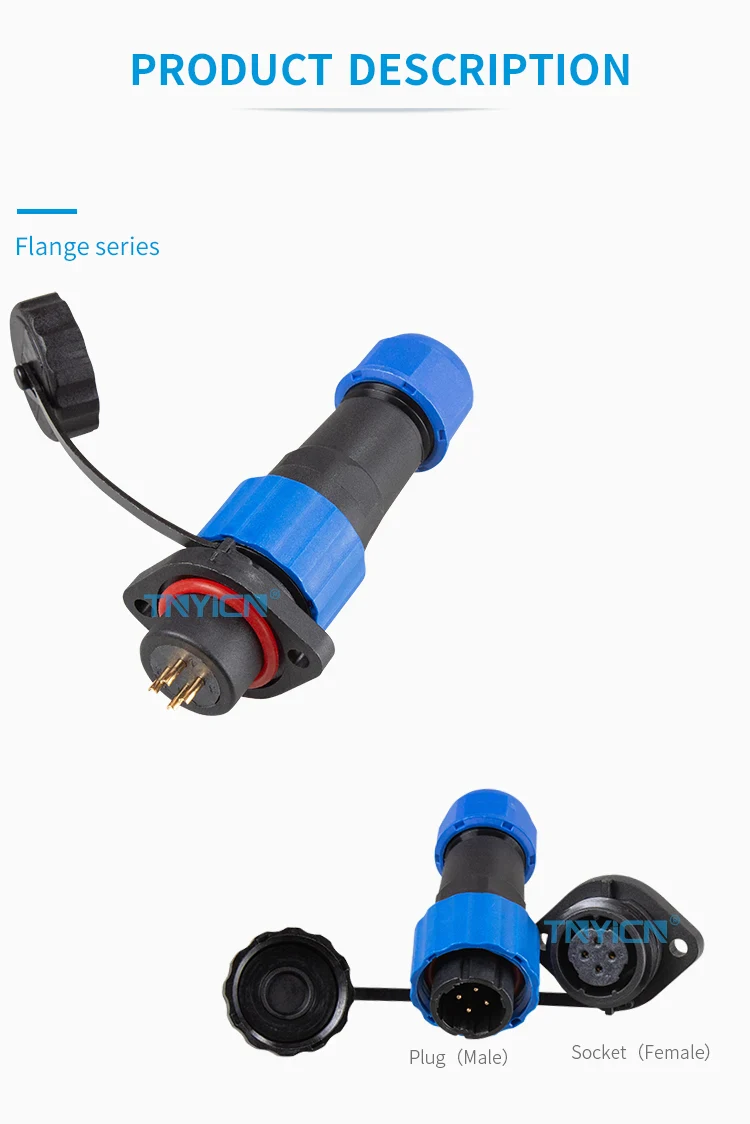

Product Overview
The SD16 Flange 4Pin 5A Solder Type Waterproof Connector is designed for panel mount waterproof connection in outdoor lighting, industrial equipment, power supply, automation, and electrical control applications.
This model uses solder type wiring and a threaded locking structure. It is suitable for projects that require stable electrical contact, secure mechanical connection, and reliable cable assembly.

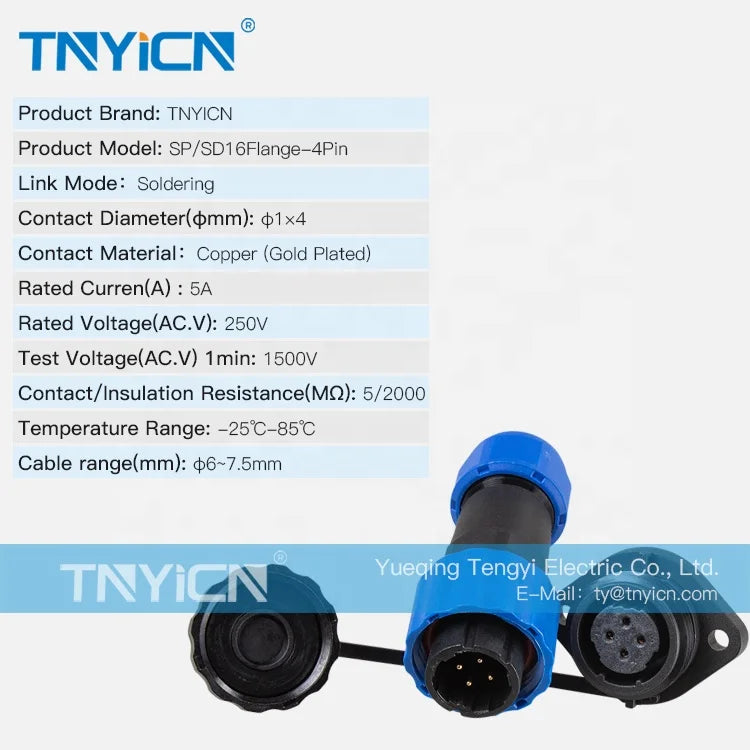

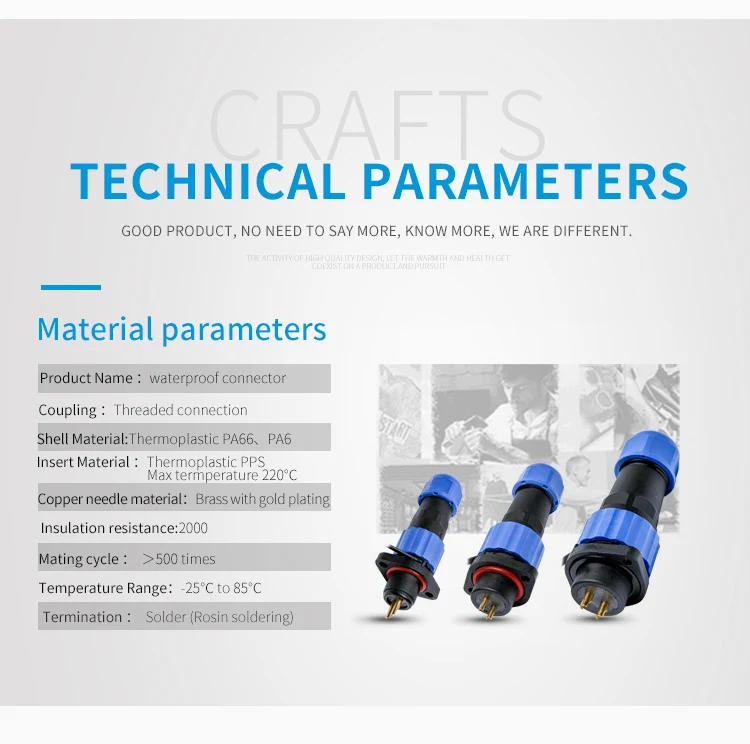

Core Specifications
| Series | SD16 |
|---|---|
| Connector Type | Flange |
| Pins | 4Pin |
| Rated Current | 5A |
| Working Voltage | 380V AC |
| Withstand Voltage | 1500V |
| Wiring Method | Solder Type |
| Locking Method | Thread Connection |
| Cable OD | φ6-7.5 mm |
| Contact Diameter | φ1×4 |
| Cable Specification | ≤0.75 mm² / 18 AWG |
| Contact Resistance | 5 mΩ |
| Insulation Resistance | 2000 MΩ |
| Shell Material | Thermoplastic PA66, PA6 |
| Contact Material | Copper, gold plated |
| Temperature Range | -25℃ to 85℃ |

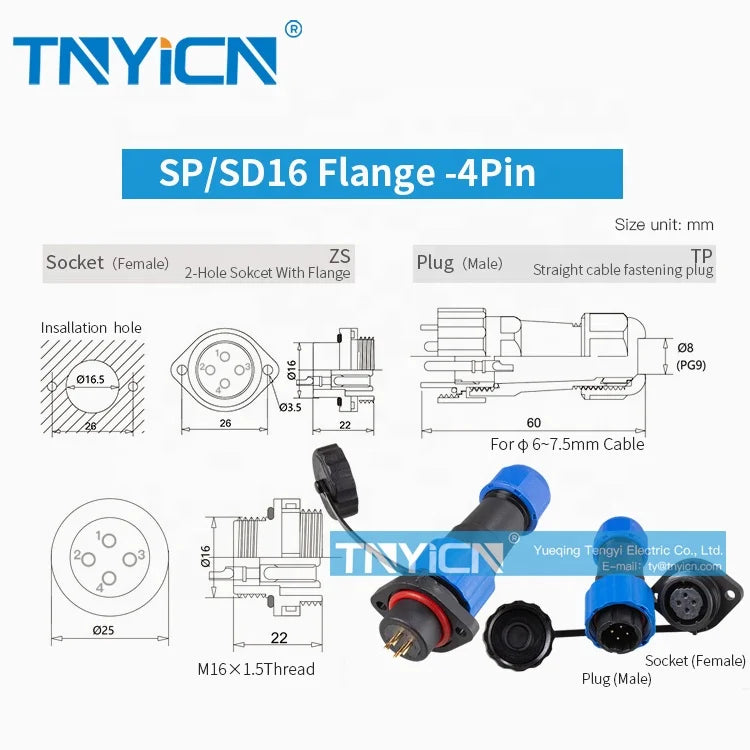

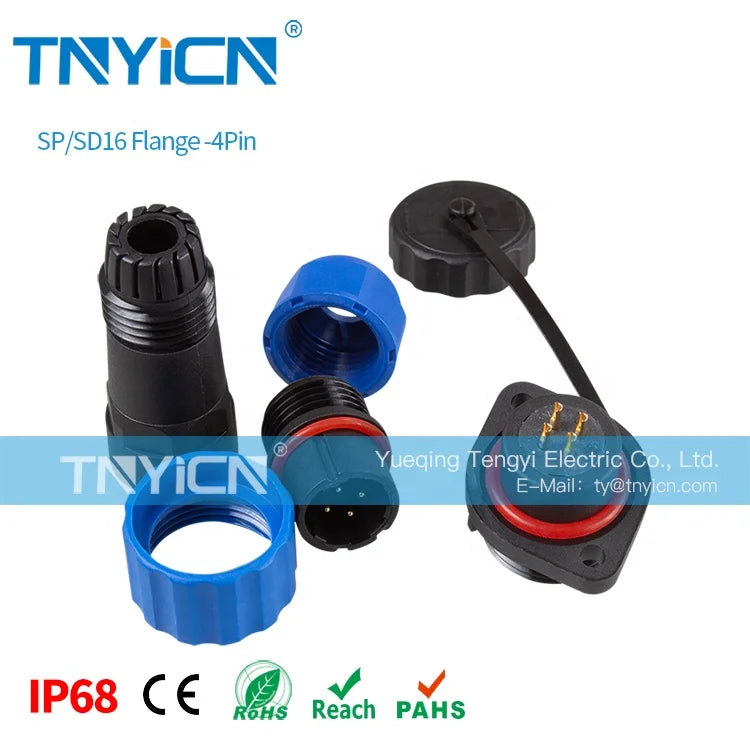

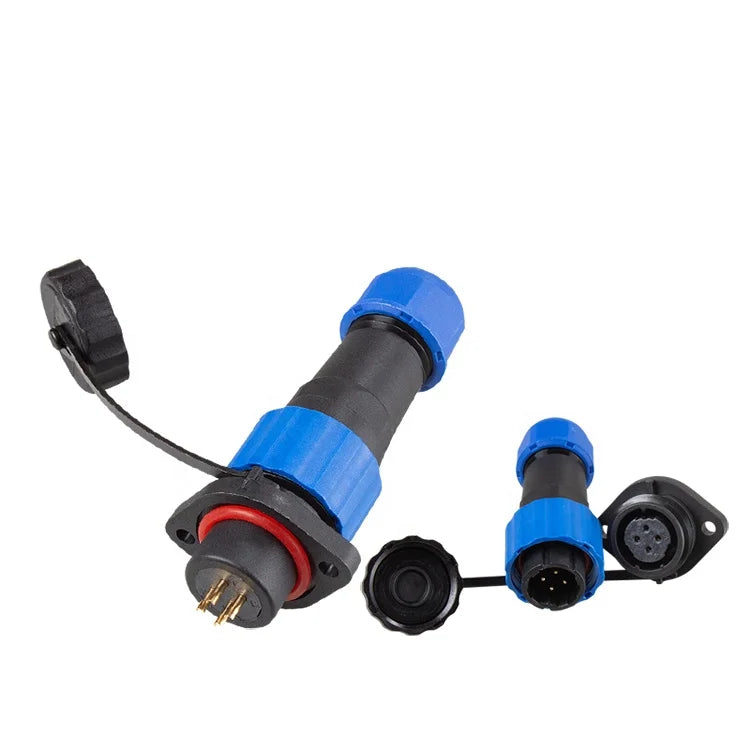

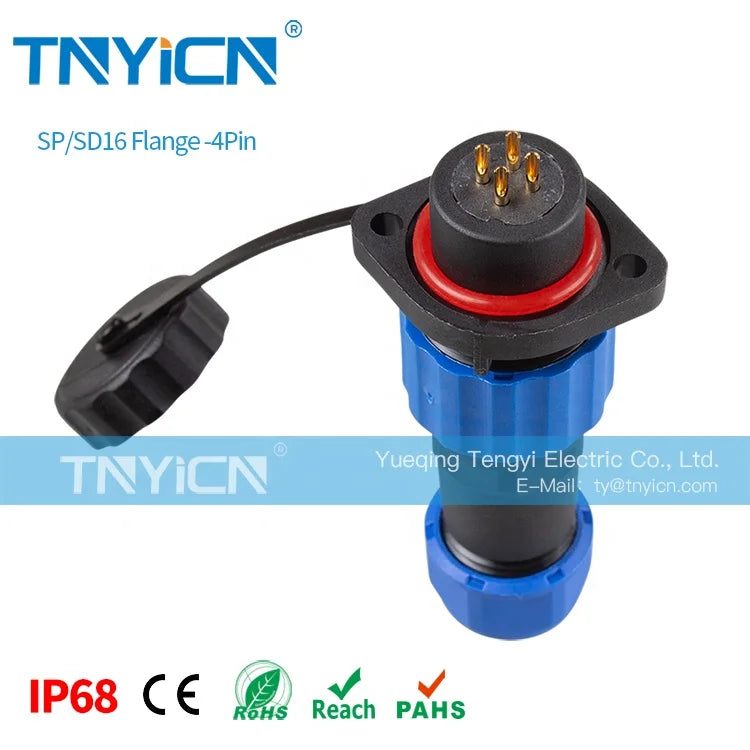

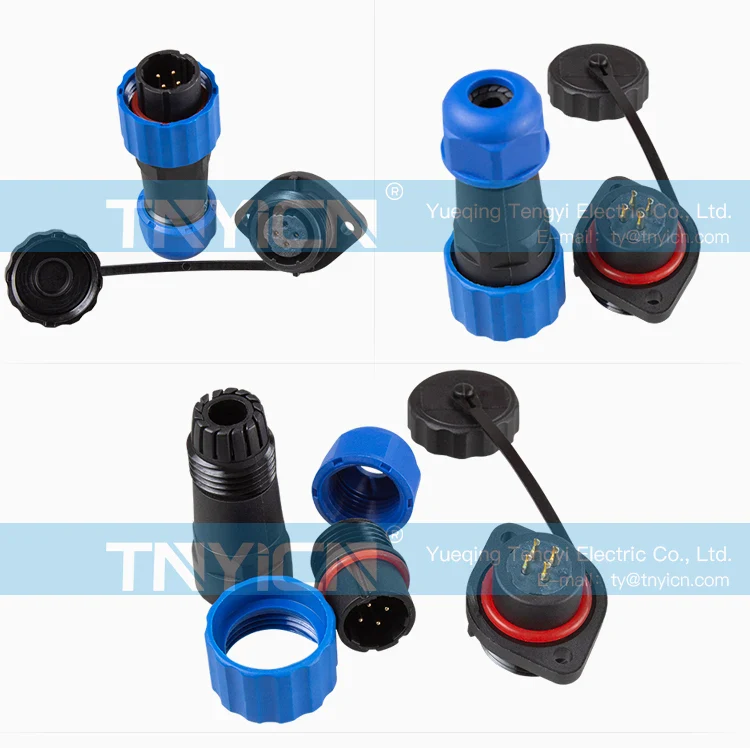

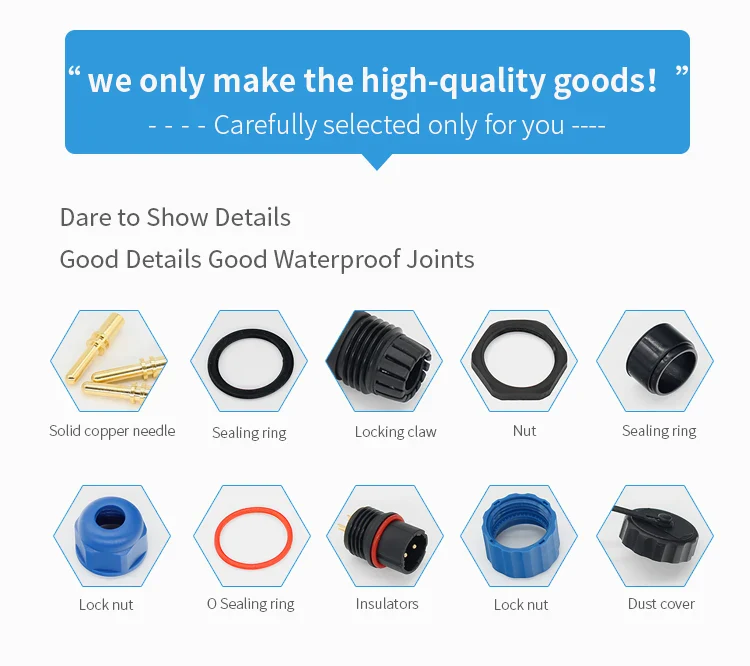

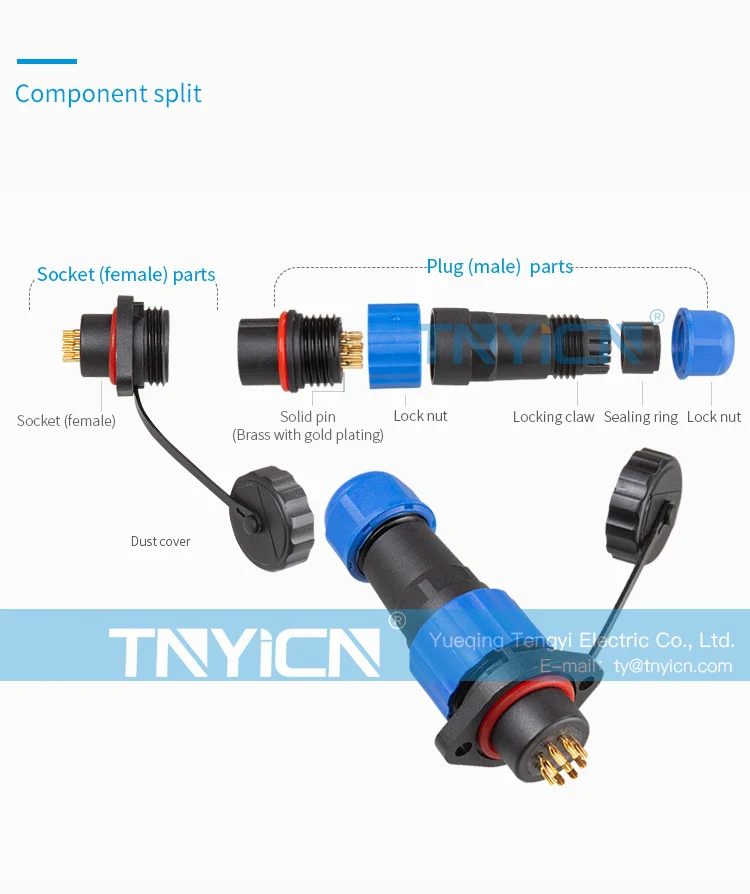

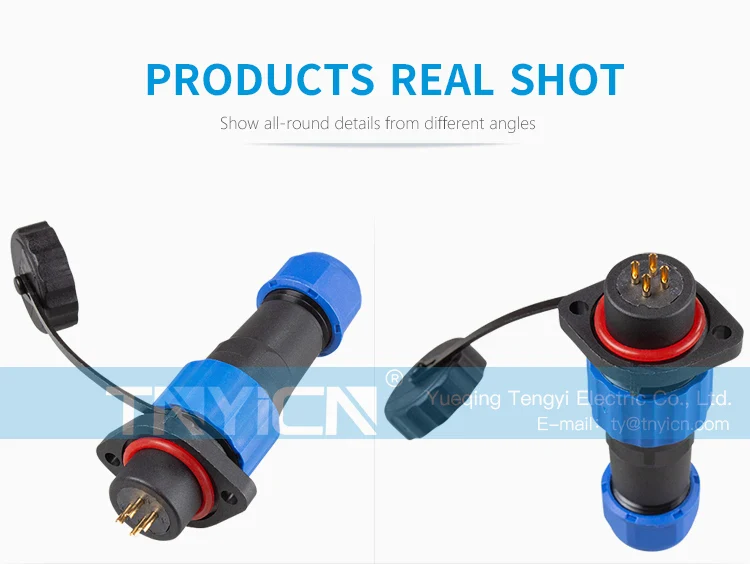

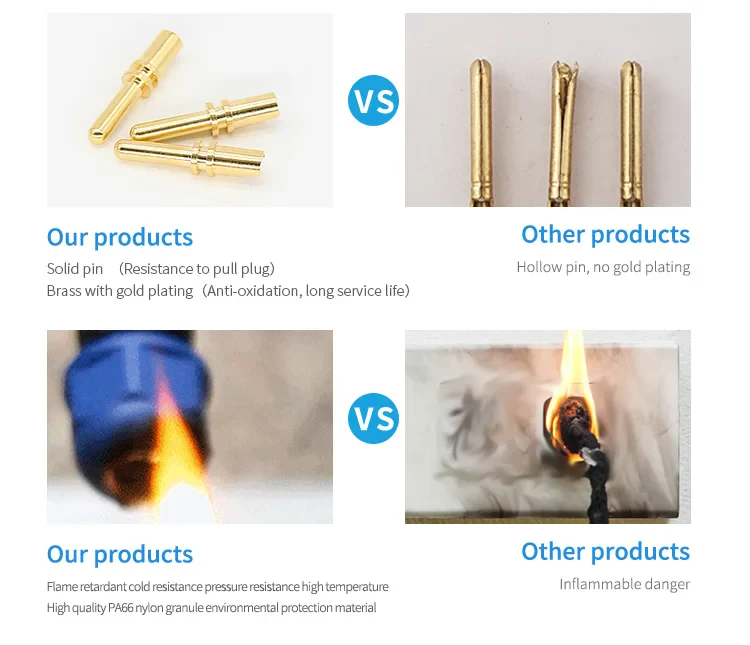

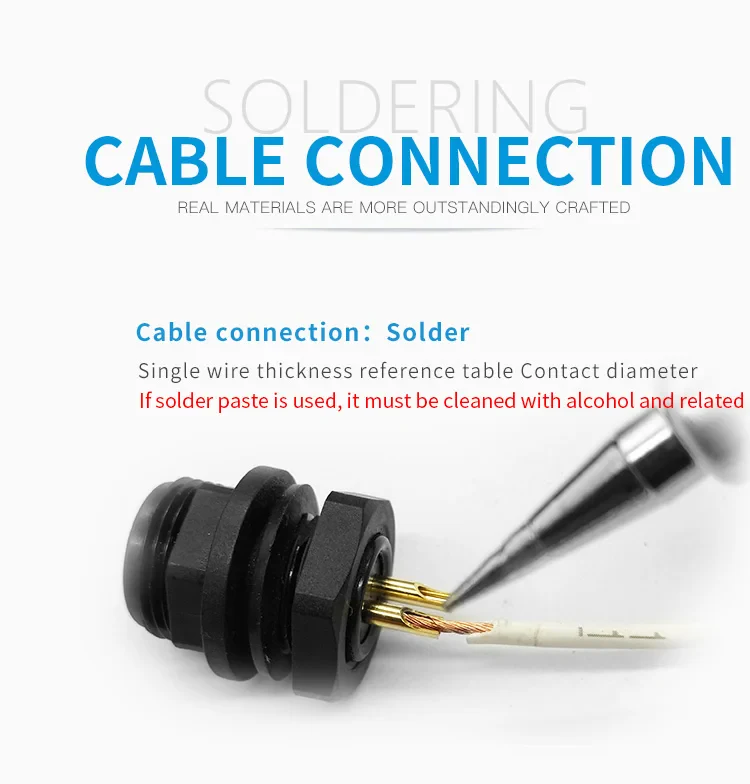

Product Details and Dimensions
Applications
- Outdoor LED lighting and landscape lighting systems
- Industrial automation equipment
- Power supply and electrical control systems
- Sensor and signal cable connection
- Machinery, equipment, and waterproof wiring projects
How to Request a Quote
Please send us the required series, connector type, pin count, rated current, cable outer diameter, quantity, and application environment. Our team will help confirm the suitable connector model and provide a quotation.
FAQ
Can this connector be customized?

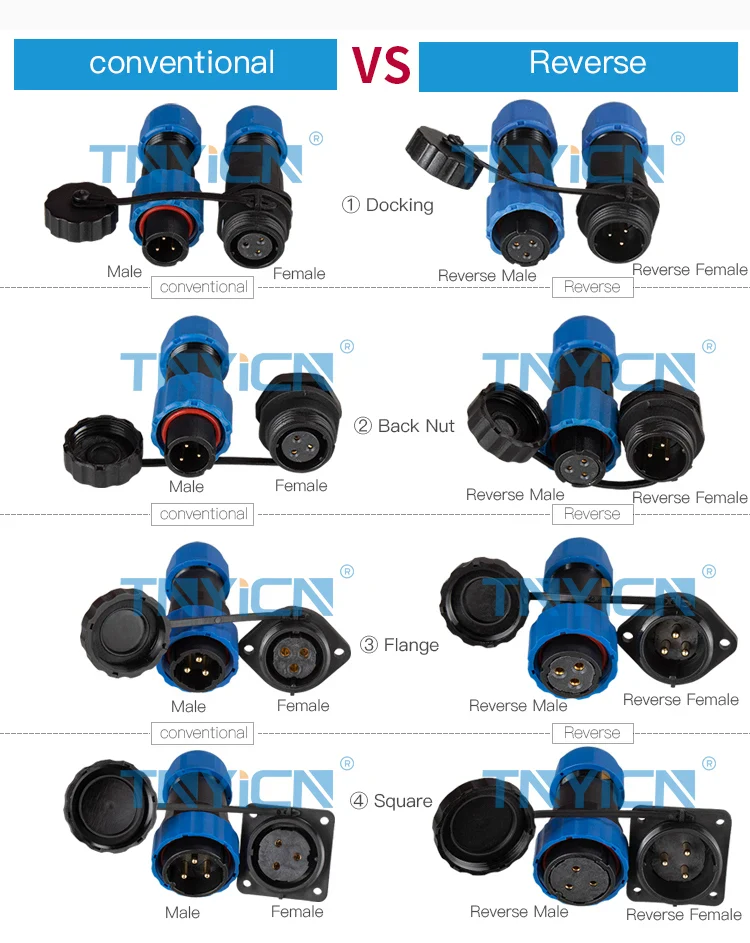

Yes. Pin count, cable length, wiring arrangement, and conventional or reverse pin configuration can be customized according to project requirements.
How do I choose the correct model?
Please confirm the pin count, rated current, cable outer diameter, wiring method, installation type, and waterproof requirement before ordering.
Is this connector suitable for outdoor use?
It is suitable for outdoor and industrial waterproof connection projects when the correct cable diameter, assembly method, and sealing requirements are confirmed.
